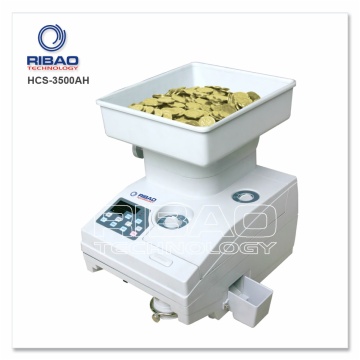

Coin Counter      HCS-3500AH

  • Description

Technical Specification:               CE approved                      Click for larger photo





Counting Speed:

2,500 coins/min. (max)

Hopper Capacity:

18000(max)

Countable coin size:

Thickness: 0.7-3.9mm



Diameter: 14-34mm

Max. Counting Display:

999999

Counting Mode:

Continuous Counting Mode



Batch Counting Mode



Accumulation Counting Mode

Consumption Power:

70W (during operation)

Power Requirements:

AC 110V~121V, 60HZ or AC 220V~242V, 50HZ

Dimensions

363 (W) x 370 (L) x 327 (H) mm

Net Weight:

11kg

Transportation Packing:

2 units/carton

Carton Dimensions:

675x 550 x 340 mm

Gross Weight/carton:

28.5kg

  •
  • This model is our upgrade new model based on HCS-3300, compared with HCS-3300, this coin counting machine has following advantages as follows:
  • 1) It can count the coins (especially the large coins that diamter is bigger than 30 mm) more smoothly and fastly when the hopper is full of coins because motorized hopper can control the flux of the coins accordingly, and avoid the jamming in the counting passage;
  • 2) It has bigger hopper;
  • 3) The speed is higher;
  •
  • Compared with the usual coin counting machine with the motorized hopper in the market, it has the following significant features:
  • 1) When the foreign objects is jammed under the thickness adjusting block, the user can open the side cover and thickness adjusting block to remove the foreign objects easily, without need to remove the all the coins in the hopper.
  • 2) When the foreign objects is heavy jammed in the coin centrifugual disc area (in the hopper which is not achivable by user), the user can open the upper cover and hopper motor assembly to achieve the disc area easily, and this feature is also much helpful for cleaning and daily maintenance!
